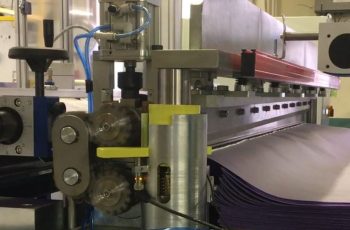

This widest in the standard range of sheeters, it is precision engineered to maintain an excellent shear cut across it’s full width. A modular servo driven nip roll assembly, used to index mateterial to length.

The shear cutting action is unique to the Autogil range which is not only highly precise but also robust by design. This ensures a clinical cut on the thinnest of materials. Cams are used to move the top blade carrier up and down for a promoting a fast, smooth and quiet action.

  • Product Sheet

Standard Features

  • Steel box section frame with cover panels, mounted on adjustable jacking feet or castors
  • Main Steel base plate, side plates & tie beams
  • High grade bearing units throughout
  • Cam operated blade movement
  • High grade cutting blades – cutting geometry to suit application
  • User friendly blade setting mechanism and procedure
  • Geared motor & flywheel options for variable cutting force
  • Main shaft encoder – cutting axis monitoring
  • Servo driven feed roll nip assembly – 100mm ΓΈ Rubber Covered Rollers
  • Fully interlocked safety guard – polycarbonate vision panel and gull-wing access doors
  • Blade safety anti-drop collar and sensor
  • IP rated electrical enclosure – mounted to frame
  • Dual channel Safety Circuit with Relay & Emergency Stops
  • Engraved Control Panel
  • Low Voltage Control Circuit
  • Touch Screen Colour HMI

The Machine will be CE Marked and is designed to conform to EMC & RFI requirements.

Specification

  • 150 Per Minute
  • 1500mm
  • 0.070mm +/-

Production Rates

  • 150 Per Minute
  • 120 Per Minute
  • 100 Per Minute
  • 80 Per Minute
  • 40 Per Minute
  • 30 Per Minute
  • 20 Per Minute
  • 10 Per Minute

Call our sales team +44 (0) 1626 333366

Your enquiry will be dealt with swiftly and effectively.

Basic Specification

  • 150Per Minute
  • 1500mm
  • 0.075mm +/-
  • mm
  • mm +/-
