The Autogil range of flat-bed die cutters (presses) a highly versatile, robust and very precise.
The machine can be used with convention-al rule knife cutting tools or engineered special purpose tooling can be designed and manufactured for your application.

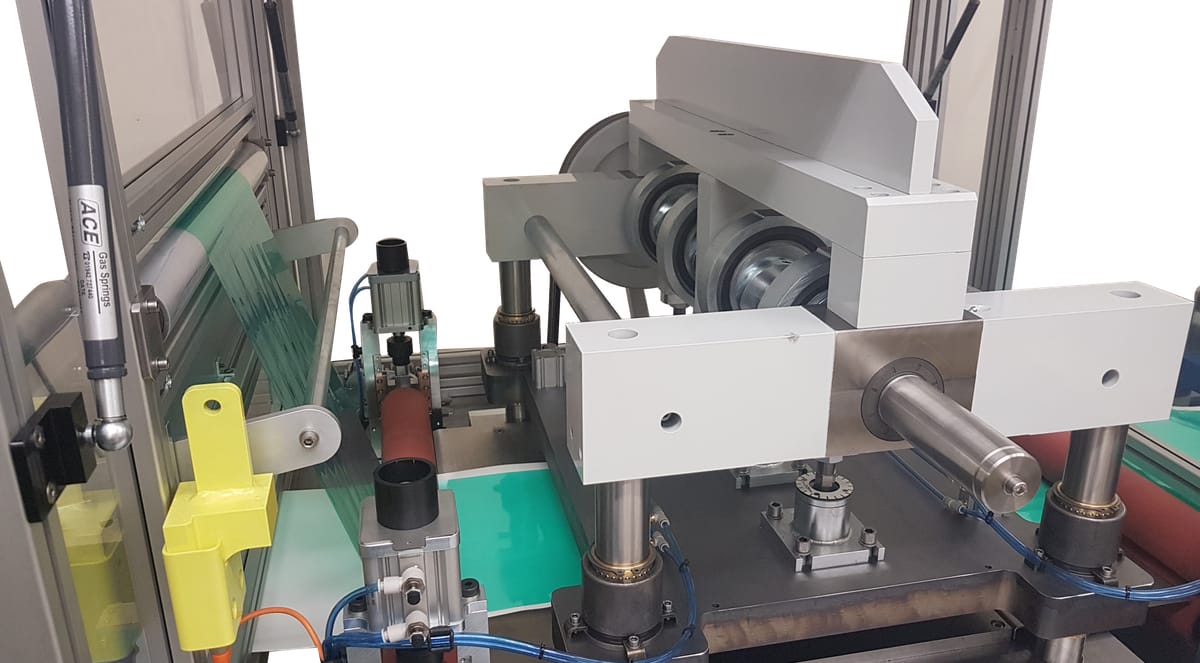

Cutting depth is accurately adjusted using a very fine pitched ball joint assembly, ensuring a consistent kiss-cut is achieved and maintained onto the thinnest of back-ing liners.

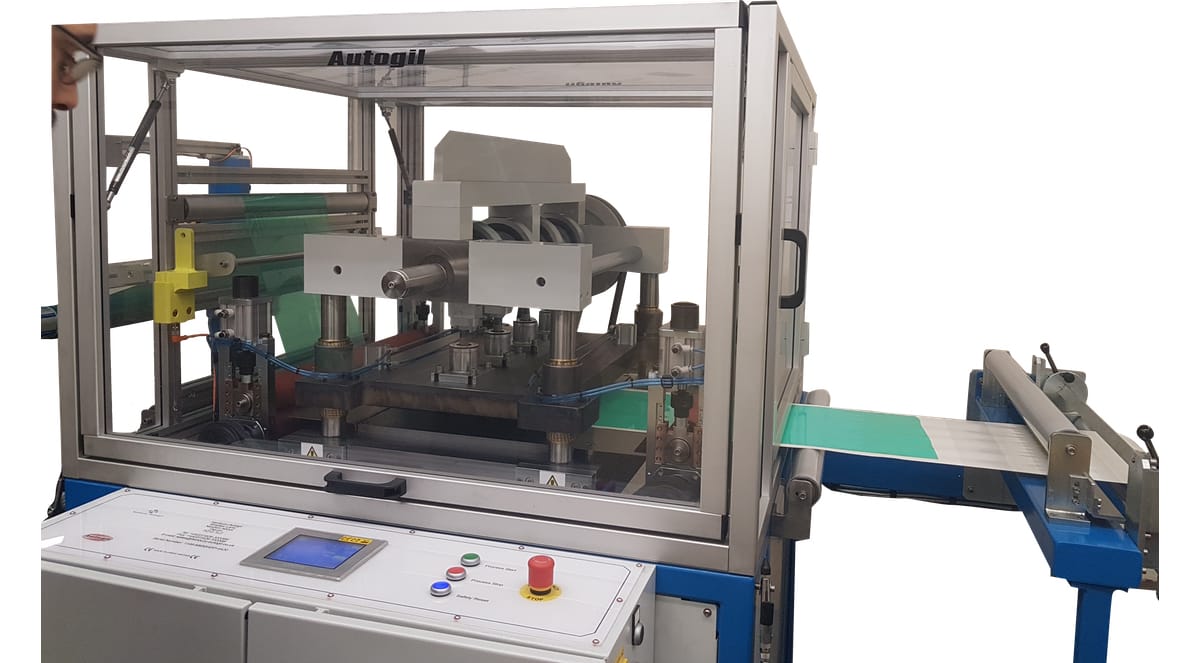

600HDP Flat-Bed Die Cutting Press – High-Tonnage Flatbed Precision System
Home / Specification / 600HDP Flat-Bed Die Cutters (Presses) – FLATBED DIECUTTER
Overview
The 600HDP Flat-Bed Die Cutting Press from Hanbury Autogil is a high-force, heavy-duty die cutting solution designed for applications requiring large-format tooling, tight tolerance kiss-cutting, and robust, repeatable press cycles. Engineered for precision, reliability, and integration into automated manufacturing environments, the 600HDP is ideal for demanding industries such as medical, electronics, automotive, aerospace, packaging, and gasket fabrication.
This flatbed press supports conventional steel rule dies as well as custom precision tooling designed specifically for your process.
Key Features
-
Tooling Flexibility
Compatible with:-
Conventional steel rule dies
-
Custom-designed tooling for complex geometries and specialist materials
-
-
High-Precision Cutting Control
-
Cutting depth precisely managed via fine-pitched ball joint assembly
-
Ensures consistent kiss-cutting on thin liner-backed materials
-
-
Robust Mechanical Architecture
-
Heavy-duty steel construction with machined ground base plate
-

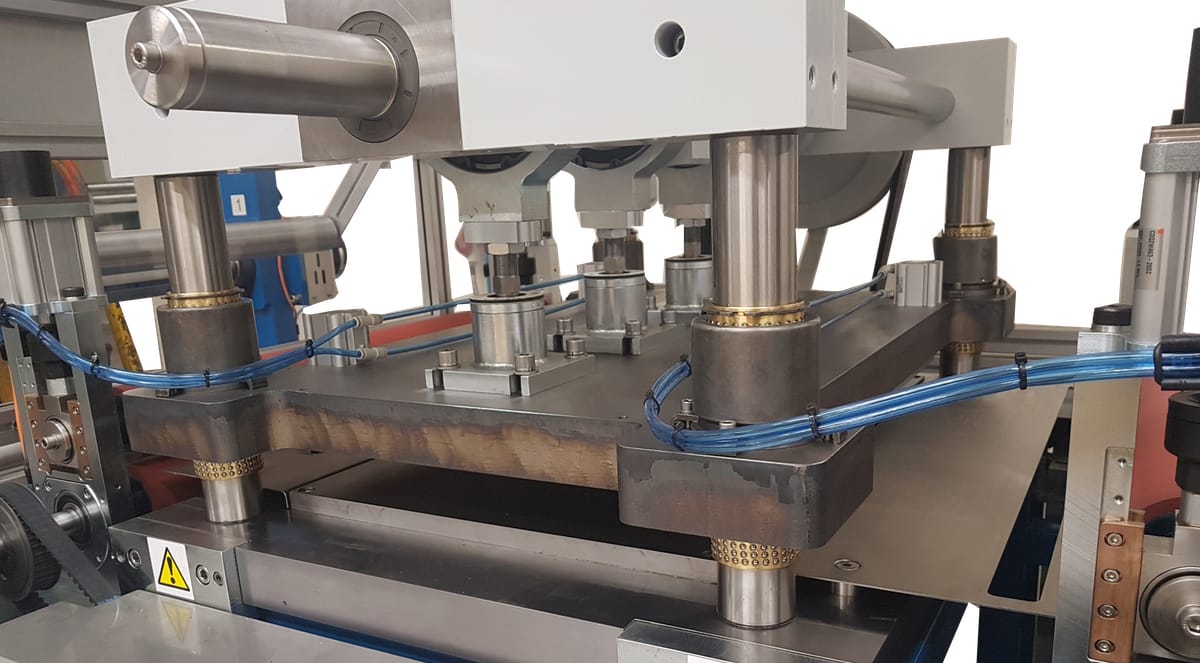

Linear bearing-guided press pillars ensure accurate vertical alignment
-
-
Large Tooling Envelope
-
Tool clamping area: 600 mm x 600 mm
-
Suited to both small component batch runs and large-format multi-cavity dies
-
Mechanical Specifications
| Feature | Description |
|---|---|
| Frame | Steel box-section with powder-coated panels, adjustable jacking feet or lockable castors |
| Base Plate | Precision-ground steel base plate for accurate tooling alignment |
| Press Columns | 4 linear bearing slides (precision ground & hardened) |
| Drive Mechanism | Eccentric cam drive (x4) with sealed bearings |
| Main Shaft | Heavy-duty, supported by high-grade bearing units |
| Flywheel | Heavy-duty flywheel with geared motor options for cutting force variation |
| Connecting Rods | 4 hardened rods with fine adjustment and insert housings |
| Top Press Plate | Precision-ground moving plate with guide pillars |
| Tool Bed Plate | Hardened, high-finish bed with interchangeable kiss-cut backing plates |
| Tool Clamping | Pneumatic clamp rails (600 x 600 mm tool base) |
| Servo Feed Assembly | Ø100 mm rubber-covered feed rollers for accurate material advancement |
| Main Shaft Encoder | Integrated encoder for real-time cutting axis monitoring |
| Safety | Dual-channel circuit with E-stops, interlocks, anti-drop sensors, CE certified |
Control & Safety
-
Touchscreen Colour HMI for user configuration, diagnostics, and monitoring
-
Low Voltage Control Circuit with engraved control panel interface
-
Fully Interlocked Polycarbonate Safety Guards with gull-wing access
-
IP-rated Electrical Cabinet integrated on frame
-
Compliant with CE Marking, EMC & RFI standards
Performance Specifications
| Parameter | Value |
|---|---|
| Max Cut Rate | 150 cycles/min (short strokes) |
| Feed Accuracy | ±0.070 mm |
| Depth Adjustment Increment | ±0.025 mm |
| Tool Bed Size | 600 mm (W) × 600 mm (D) |
Typical Production Rates by Cut Length
| Cut Length | Cut Rate |
|---|---|
| 0 – 120 mm | 150 cuts/min |
| 120 – 200 mm | 120 cuts/min |
| 200 – 300 mm | 100 cuts/min |
| 300 – 400 mm | 80 cuts/min |
| 400 – 600 mm | 40 cuts/min |
| 600 – 800 mm | 30 cuts/min |
| 800 – 1200 mm | 20 cuts/min |
| 1200 – 2400 mm | 10 cuts/min |
Note: Actual performance may vary based on material thickness, tool configuration, and feed settings.
Industry Applications
The 600HDP is engineered for mission-critical converting operations in:
-
Medical device manufacturing & diagnostics
-
Adhesive and foam fabrication
-
Automotive gaskets, seals, and insulators
-
Aerospace component layering
-
Consumer electronics shielding & spacers
-
Die-cut packaging & brand security elements
